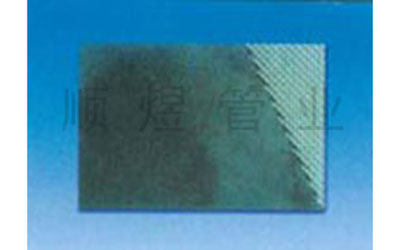

High Strength Composite Sheet
It is made by pressing flexible graphite plate with stainless steel bayonet.
Stainless steel material: 304.316L

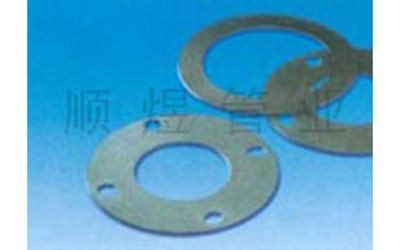

Reinforced composite gasket
It is duplicated by high-strength composite floor.

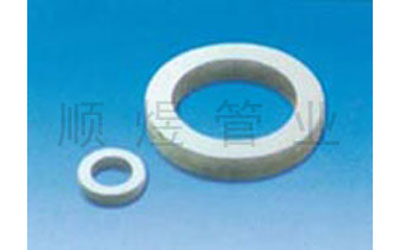

Packing gasket (ring)
It is moulded by flexible graphite material.
Steam, water, air, flue gas, inert gas, oil, various solvents, dilute oxidized acid, etc.
| Item | Work temp | Work pressure | Density | Compress ratio | Rebound ratio | Seal performance |
| ℃ | Mpa | g/cm3 | % | % | Cm3/s | |
| High strength compound sheet | -200~+600 | ＜6.4 | 1.2~1.5 | 15~32 | ＞20 | |
| Reinforced compound gasket | -200~+600 | ＜6.4 | 1.2~1.5 | 15~32 | ＞20 | ＜1.0×10-3 |
| ller ring | -200~+600 | ＜10 | 1.2~1.5 | 15~32 | ＞10 | ＜1.0×10-3 |
